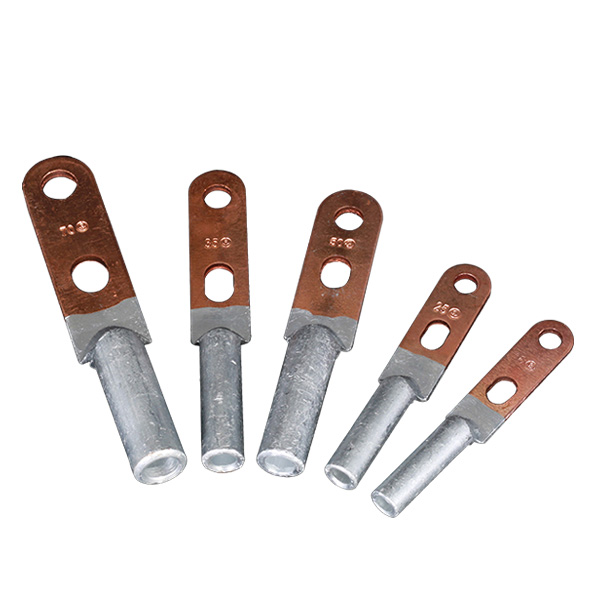

Cu-Al terminal (dual hole type)

Short Description:

Terminal connectors are used to connect tap conductor to power equipments (transformer,circuit breaker,disconnect switch.etc)or to wall bushing of substation. Aluminium connectors are also used to connect the tap conductor of T-connector.The connectors include compressive-type and bolted,both types have angle of 0°，30and 90°with the direction of tap conductor. DTL series Al-Cu connection terminal is suitable for transition joint of distribution device aluminium core cable and electric equ...

Send email to us Download as PDF

Product Detail

Product Tags

Terminal connectors are used to connect tap conductor to power equipments (transformer,circuit breaker,disconnect switch.etc)or to wall bushing of substation.

Aluminium connectors are also used to connect the tap conductor of T-connector.The connectors include compressive-type and bolted,both types have angle of 0°，30and 90°with the direction of tap conductor.

DTL series Al-Cu connection terminal is suitable for transition joint of distribution device aluminium core cable and electric equipment.DL aluminium is used for aluminium terminal linking of aluminium core cable and electric equipment.DT copper terminal is used for copper terminal electric equipment.DT copper terminal is used for copper terminal linking of copper core cable and electric equipment,The products adopt friction welding workmanship,Our company supplies Cu-Al terminal and wire clamp made by explosive welding technique. The products have features as high welding strength, excellent electric property, resistance to galvanic corrosion, long service life, never fracture, high safety, etc.

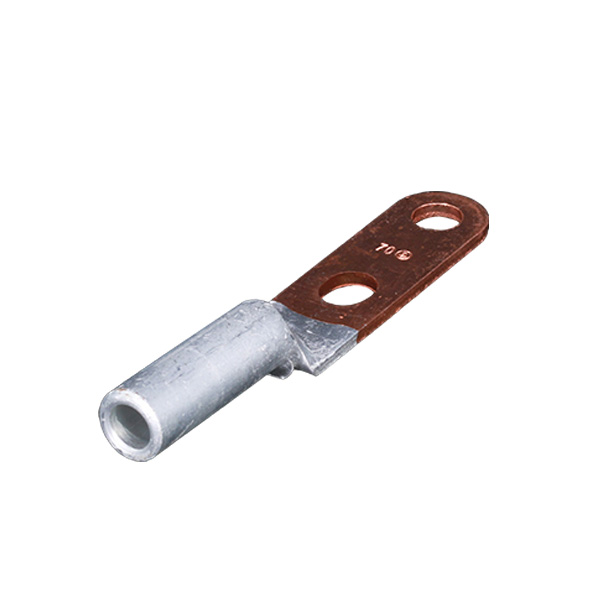

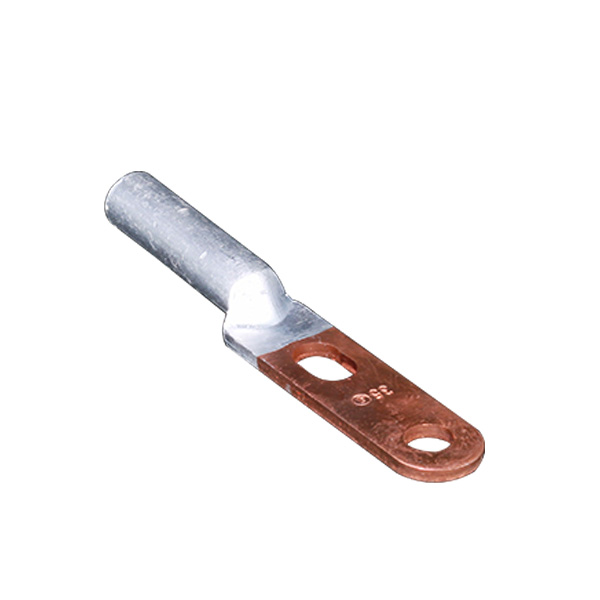

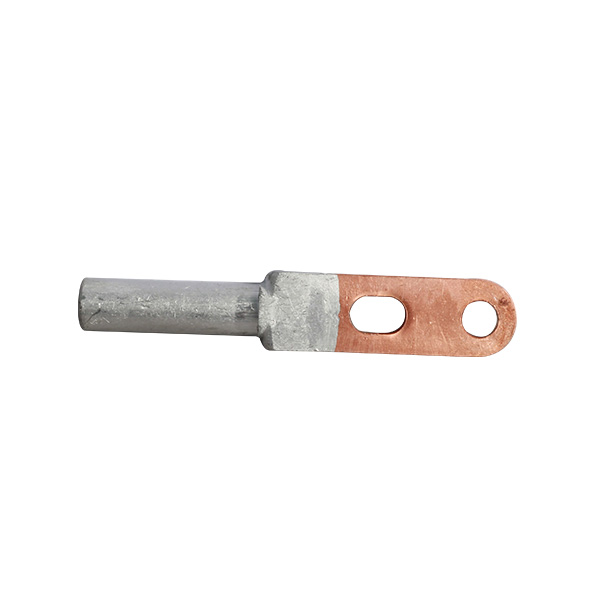

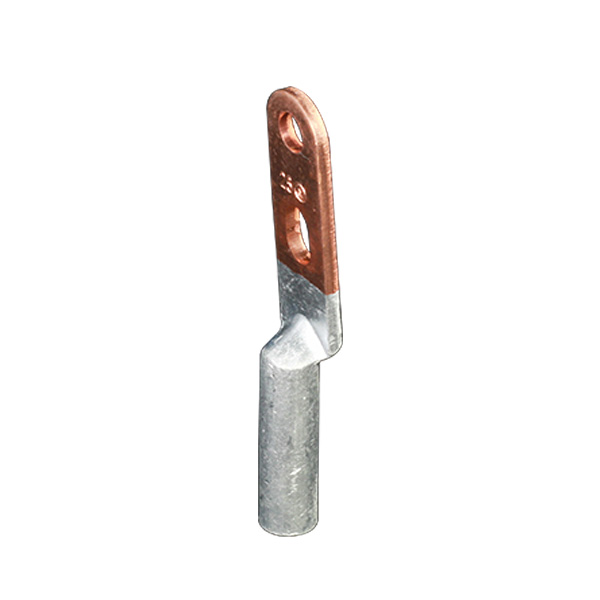

Cu-Al terminal (dual hole type)

Catalog No.	Dimensions(mm)
Catalog No.	0	D	d	L	Li	B	A
DTL-25S	8.5	12	7	95	34	20	3.2
DTL-35S	8.5	14	8.5	107	40	23	3.6
DTL-50S	8.5	16	9.7	115	42	23	4
DTL-70S	10.5	18	11.5	128	47	28	4.5
DTL-95S	10.5	21	13.5	138	50	28	4.8
DTL-120S	12.5	23	15	152	53	34	5.5
DTL-150S	12.5	25	16.5	155	55	34	6
DTL-185S	12.5	27	18.5	168	58	40	6.7
DTL-240S	12.5	30	21	172	60	40	7
DTL-300S	12.5	34	23	195	65	50	8.5
