Male Pre-Insulating Joint

Short Description:

Insulated Male Disconnector Material : Brass Insulated : Vinyl Cable Size:0.5~1.5mm² A.W.G. ：22-16 Imax:10A ITEM NO Nema Tab Thickness Dimension (mm) Color mm B D d L H MDD 1.25-110(5) 0.5 * 2.8 0.5 2.8 1.7 4.3 17.7 10.0 Red MDD 1.25-110(8) 0.8 * 2.8 0.8 2.8 1.7 4.3 17.7 10.0 MDD 1.25-187(5) 0.5 * 4.75 0.5 4.75 1.7 4.3 20.0 10.0 MDD 1.25-187(8) 0.8 * 4.75 0.8 4.75 1.7 4.3 20.0 10.0 MDD 1.25-250 0.8 * 6.35 0.4 * 2 6.35 1.7 4.3 21.0 10.0 Cable Size:1.5~2.5mm² A.W...

Brand: Jinmao Electric

Materials: Brass

Insulation: PVC

Finished: Tin-Plated

Characteristics: Heat resistant: -10~75℃

Flared-barrel entry for easy wire insertion:

Send email to us Download as PDF

Product Detail

Product Tags

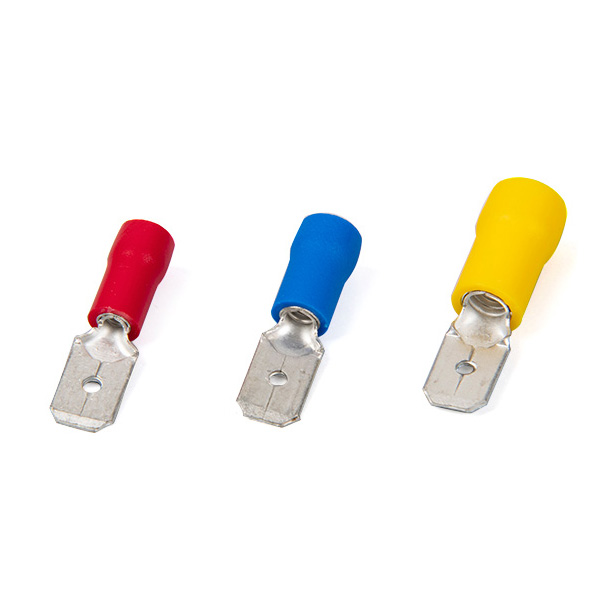

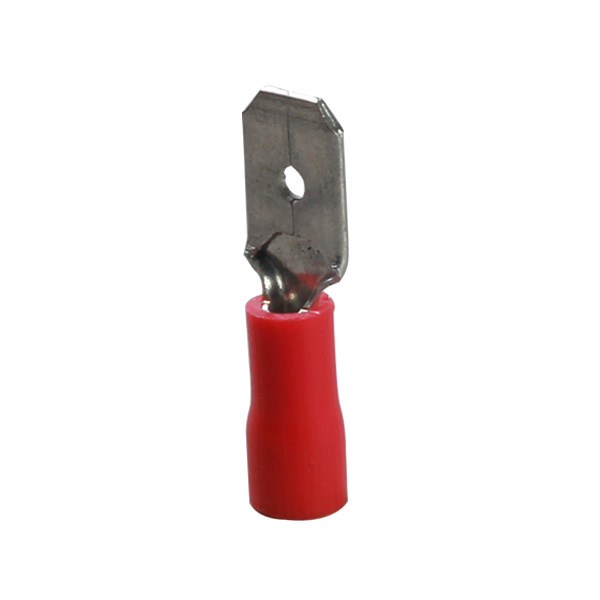

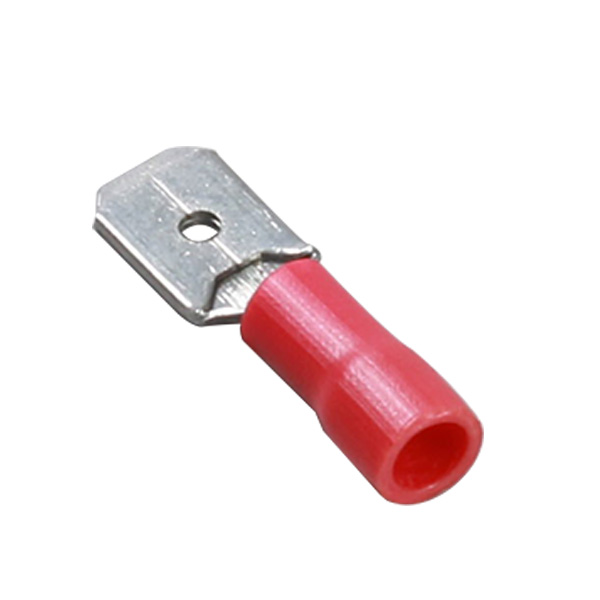

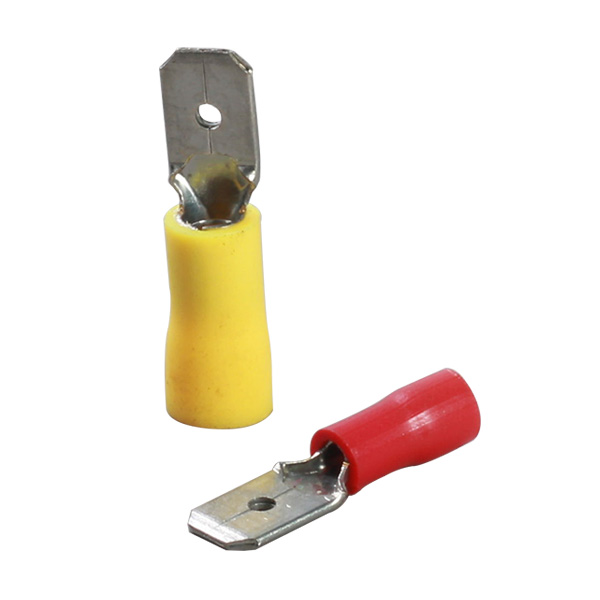

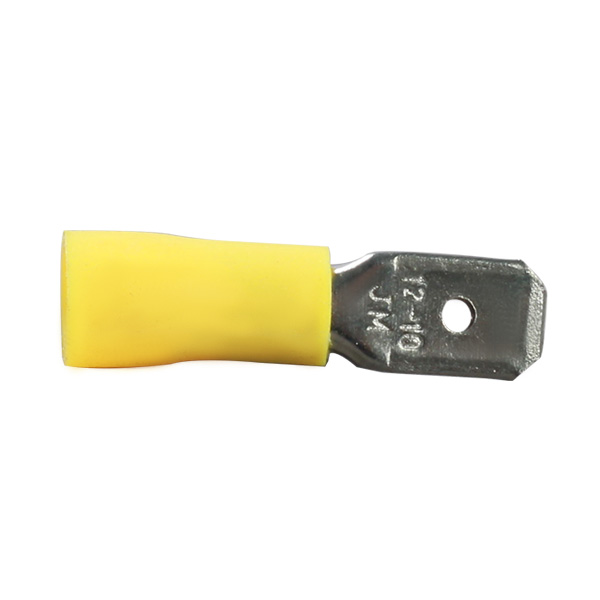

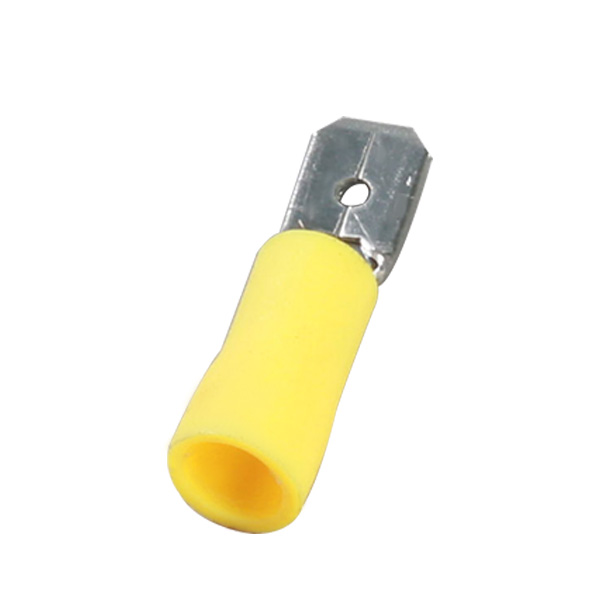

Insulated Male Disconnector
Material : Brass			Insulated : Vinyl
Cable Size:0.5~1.5mm²		A.W.G. ：22-16			Imax:10A
ITEM NO	Nema Tab	Thickness	Dimension (mm)					Color
ITEM NO	mm		B	D	d	L	H	Color
MDD 1.25-110(5)	0.5 * 2.8	0.5	2.8	1.7	4.3	17.7	10.0	Red
MDD 1.25-110(8)	0.8 * 2.8	0.8	2.8	1.7	4.3	17.7	10.0
MDD 1.25-187(5)	0.5 * 4.75	0.5	4.75	1.7	4.3	20.0	10.0
MDD 1.25-187(8)	0.8 * 4.75	0.8	4.75	1.7	4.3	20.0	10.0
MDD 1.25-250	0.8 * 6.35	0.4 * 2	6.35	1.7	4.3	21.0	10.0
Cable Size:1.5~2.5mm²		A.W.G. ：16-14			Imax:15A
MDD 2-187(5)	0.5 * 4.75	0.5	4.75	2.3	4.3	20.0	10.0	Blue
MDD 2-187(8)	0.8 * 4.75	0.8	4.75	2.3	4.3	20.0	10.0
MDD 2-250	0.8 * 6.35	0.4 * 2	6.35	2.3	4.3	21.0	10.0
Cable Size:4~6mm²		A.W.G. ：12-10			Imax:24A
MDD 5.5-250	0.8 * 6.35	0.4 * 2	6.35	3.4	5.7	25.0	13.0	Yellow
