Water-proof connecting terminal

Short Description:

Water-proof copper connecting terminal No. Dimensions(mm) B D d L DT-F-25 26 37 11 110 DT-F-35 26 37 11 110 DT-F-50 26 37 11 112 DT-F-70 30 37 11 114 DT-F-95 30 37 11 114 DT-F-120 32 37 13 126 DT-F-150 32 37 13 126 DT-F-185 36 41 13 134 DT-F-240 40 41 13 136 DT-F-300 40 41 17 141 DT-F-400 44 41 17 178 DT-F-500 44 41 17 184 Water-...

Send email to us Download as PDF

Product Detail

Product Tags

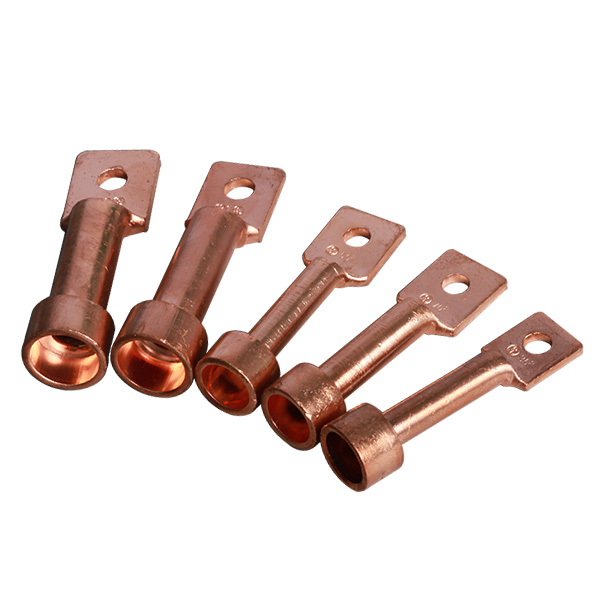

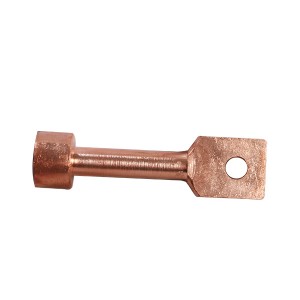

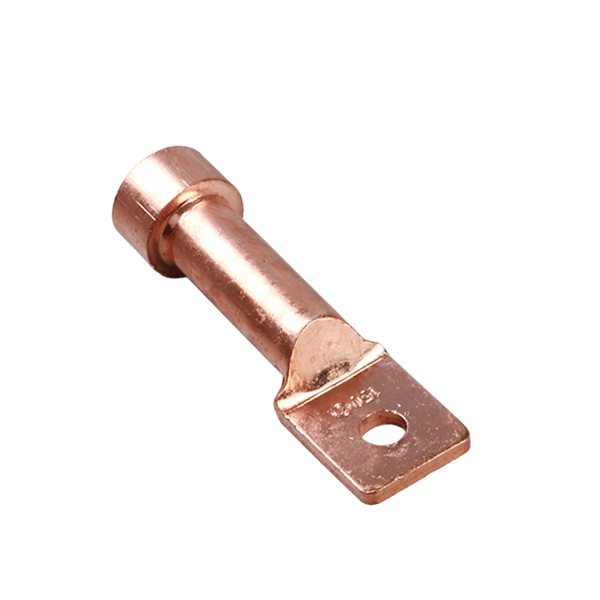

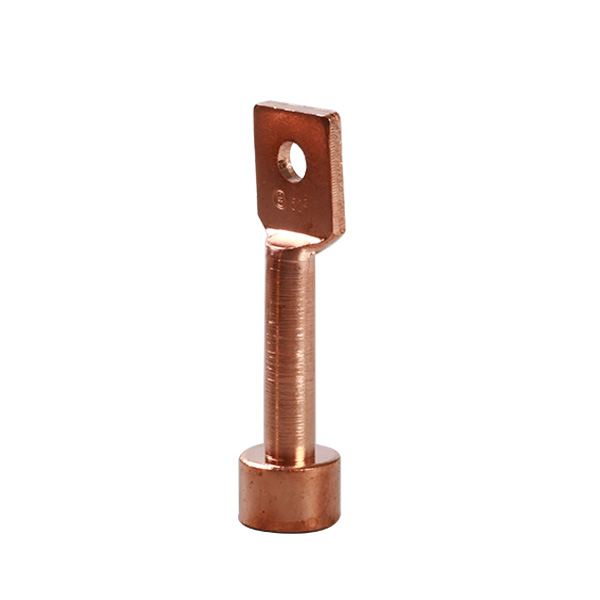

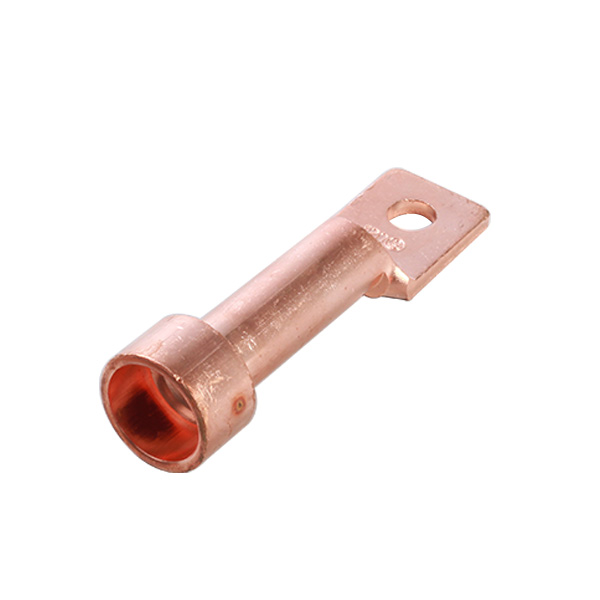

Water-proof copper connecting terminal

No.	Dimensions(mm)
No.	B	D	d	L
DT-F-25	26	37	11	110
DT-F-35	26	37	11	110
DT-F-50	26	37	11	112
DT-F-70	30	37	11	114
DT-F-95	30	37	11	114
DT-F-120	32	37	13	126
DT-F-150	32	37	13	126
DT-F-185	36	41	13	134
DT-F-240	40	41	13	136
DT-F-300	40	41	17	141
DT-F-400	44	41	17	178
DT-F-500	44	41	17	184

Water-proof Cu-Al connecting terminal

Catalog No.	Dimensions(mm)
Catalog No.	D1	D2	D3	L	L1	B	S
DTL-F-25	31	37	11	120	30	26	3.5
DTL-F-35	31	37	11	120	30	26	3.5
DTL-F-50	31	37	11	122	34	30	3.5
DTL-F-70	31	37	11	124	34	30	4.0
DTL-F-95	31	37	11	124	34	30	4.0
DTL-F-120	31	37	13	136	38	32	4.5
DTL-F-150	31	37	13	136	38	32	5.0
DTL-F-185	35	41	13	144	42	36	5.5
DTL-F-240	35	41	13	146	46	40	6.8
DTL-F-300	35	41	17	151	50	40	7.8
DTL-F-400	35	41	17	189	50	44	12.8
DTL-F-500	35	41	17	194	50	44	14.8
